TRIK MEMBUAT WARNA GRADIEN PADA FORM

Assalamualaikum, wr, wb..

Trik membuat warna gradien pada form

Baiklah kali ini saya akan membahas trik membuat warna background form supaya keren, yaitu warna background form berwarna gradien.
Penasaran kan..? Ok gak usah banyak basa basi lagi kita langsung bahas, simak ya.. Siap.. hehe..

1. Seperti biasa buka program Visual Basic dan buat form baru
2. Langsung saja masukan objek-objek yang diperlukan ya, berikut objek-objek yang diperlukan :
1. Slider1
• Nama = slider1
• LargeChange = 10
• Max = 255
• Min = 0
• Orientation = 0-sldHorizontal
• TickFrequency = 10
• TickStyle = 0-sldBottomRight
2. Slider2
• Nama = slider2
• LargeChange = 10
• Max = 255
• Min = 0
• Orientation = 0-sldHorizontal
• TickFrequency = 10
• TickStyle = 0-sldBottomRight
3. Slider1
• Nama = slider3
• LargeChange = 10
• Max = 255
• Min = 0
• Orientation = 0-sldHorizontal
• TickFrequency = 10
• TickStyle = 0-sldBottomRight
4.  CommandButton1
• Nama = Command1
• Caption = Mulai
5. CommandButton2
• Nama = Command2
• Caption = Quit!
6. CheckBox
• Nama = Check1
• Caption = Dari atas kebawah
7.  Picture1
• Nama = Picture1
• Height = 375
• Width = 735
8. Picture2
• Nama = Picture2
• Height = 375
• Width = 735
9. Picture3
• Nama = Picture3
• Height = 375
• Width = 735
10. Buat Label untuk masing-masing Slider dengan urutan R,G,B (Red, Green, Blue)
3. Setelah semuanya beres, lalu masukan listing kode untuk setiap objeknya ya, berikut dibawah ini listing kodenya sesuaikan dengan funsi event dari setiap objeknya.

Private Sub Check1_Click()
    Gradient Picture1, Slider1.Value, 0, 0, Check1.Value
    Gradient Picture2, 0, Slider2.Value, 0, Check1.Value
    Gradient Picture3, 0, 0, Slider3.Value, Check1.Value
    Gradient Picture4, Slider1.Value, Slider2.Value, Slider3.Value, Check1.Value
    Label5.Caption = CStr(Slider1.Value) + ", " + CStr(Slider2.Value) + ", " + CStr(Slider3.Value) + ", " + CStr(Check1.Value)
End Sub

Private Sub Command1_Click()
    Gradient Form1, Slider1.Value, Slider2.Value, Slider3.Value, Check1.Value
End Sub


Private Sub Command2_Click()
    Unload Form2
    Unload Form1
End Sub


Private Sub Form_Resize()
    Gradient Me, Slider1.Value, Slider2.Value, Slider3.Value, Check1.Value
    'SSPanel1.Left = Form1.Width / 2 - SSPanel1.Width / 2
    'SSPanel1.Top = Form1.Height / 2 - SSPanel1.Height / 2
End Sub


Private Sub Picture1_Click()

End Sub

Private Sub Picture3_Paint()
    Gradient Picture3, 0, 0, 255, 1
    Gradient Picture4, 0, 0, 255, 1
End Sub






Private Sub Slider1_Scroll()
    Label1.Caption = "Red = " + CStr(Slider1.Value)
    Gradient Picture1, Slider1.Value, 0, 0, Check1.Value
    Gradient Picture4, Slider1.Value, Slider2.Value, Slider3.Value, Check1.Value
    Label5.Caption = CStr(Slider1.Value) + ", " + CStr(Slider2.Value) + ", " + CStr(Slider3.Value) + ", " + CStr(Check1.Value)
End Sub


Private Sub Slider2_Scroll()
    Label2.Caption = "Green = " + CStr(Slider2.Value)
    Gradient Picture2, 0, Slider2.Value, 0, Check1.Value
    Gradient Picture4, Slider1.Value, Slider2.Value, Slider3.Value, Check1.Value
    Label5.Caption = CStr(Slider1.Value) + ", " + CStr(Slider2.Value) + ", " + CStr(Slider3.Value) + ", &quot + CStr(Check1.Value)
End Sub


Private Sub Slider3_Scroll()
    Label3.Caption = "Blue = " + CStr(Slider3.Value)
    Gradient Picture3, 0, 0, Slider3.Value, Check1.Value
    Gradient Picture4, Slider1.Value, Slider2.Value, Slider3.Value, Check1.Value
    Label5.Caption = CStr(Slider1.Value) + ", " + CStr(Slider2.Value) + ", " + CStr(Slider3.Value) + ", " + CStr(Check1.Value)
End Sub


Buat modul baru (klik kanan pada box project sebelah kanan, pilih Add - module) ganti properti Name = grad dan masukan listing dibawah ini untuk modul.



Sub Gradient(TheObject As Object, Redval&, Greenval&, Blueval&, TopToBottom As Boolean)
    Dim Step%, Reps%, FillTop%, FillLeft%, FillRight%, FillBottom%, HColor$
    Step = (TheObject.Height / 63)
    If TopToBottom = True Then FillTop = 0 Else FillTop = TheObject.Height - Step
    FillLeft = 0
    FillRight = TheObject.Width
    FillBottom = FillTop + Step
    For Reps = 1 To 63
        TheObject.Line (FillLeft, FillTop)-(FillRight, FillBottom), RGB(Redval, Greenval, Blueval), BF
        Redval = Redval - 4
        Greenval = Greenval - 4
        Blueval = Blueval - 4
        If Redval <= 0 Then Redval = 0
        If Greenval <= 0 Then Greenval = 0
        If Blueval <= 0 Then Blueval = 0
        If TopToBottom = True Then FillTop = FillBottom Else FillTop = FillTop - Step
        FillBottom = FillTop + Step
    Next
End Sub


Simpan dengan nama grad

---------------------------------->

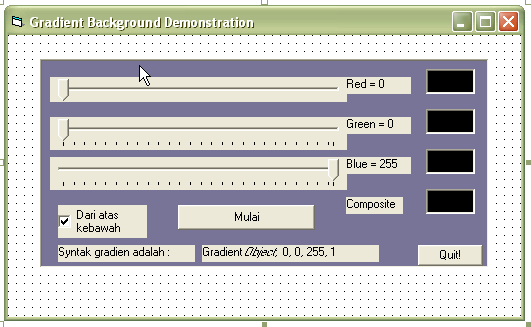

Coba jalankan, dan geser-geser slidernya lalu klik tombol mulai, Keren kan... Selamat mencoba..

Wassalam.. n smoga bermanfaat..
